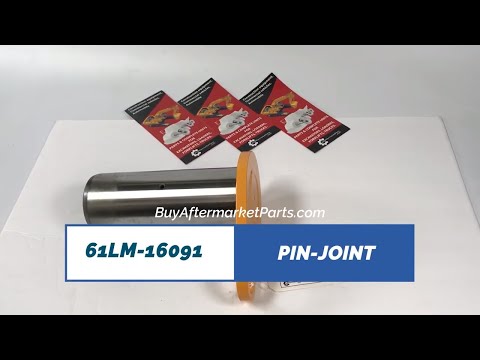

  • 360-degree view of PIN-JOINT (61LM-16091) by Hyundai Construction Equipment, showing complete design and details
  • Technical drawing of Hyundai Construction Equipment 61LM-16091 PIN-JOINT with dimensions and layout
  • Technical drawing of Hyundai Construction Equipment 61LM-16091 PIN-JOINT with dimensions and layout (figure 2)
  • Technical drawing of Hyundai Construction Equipment 61LM-16091 PIN-JOINT with dimensions and layout (figure 3)
Non-returnable part
Warning Cancer and Reproductive harm
For more information go to www.P65Warnings.ca.gov

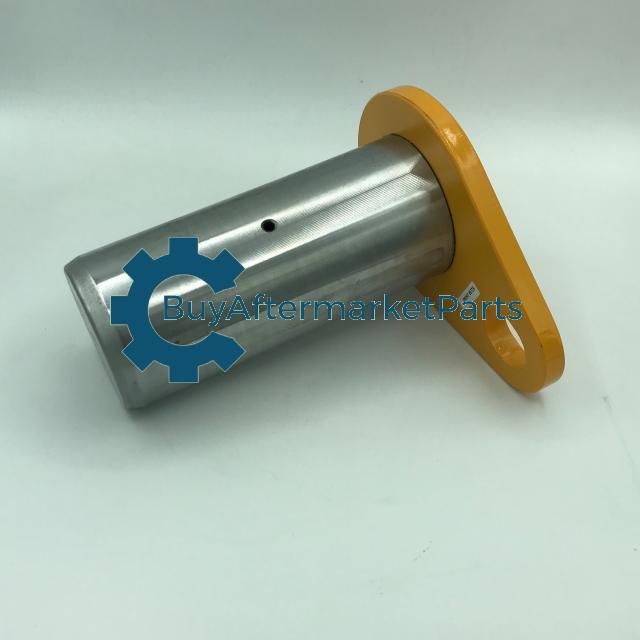

Hyundai Construction Equipment 61LM-16091 - PIN-JOINT

Part number
61LM-16091
61LM16091
61LM-16091
Applicable OEM
Hyundai Construction Equipment
Manufacturer
Hyundai Construction Equipment
Description
Select model
HL757-9 HL757-9A HL757-9S HL757-9S(BRAZIL) HL757-9SM
CBM (Cubic Meter)
0.008
Weight
15.7 KG
Condition
New
Compatible Models
9-Series Wheel Loader
Compatible HL757-9
7010 BELL CRANK & LINK
Compatible HL757-9A
7010 BELL CRANK & LINK
Compatible HL757-9S
7010 BELL CRANK & LINK
Compatible HL757-9S(BRAZIL)
7010 BELL CRANK & LINK
Compatible HL757-9SM
7010 BELL CRANK & LINK
2026-07-01 280 USD
280.00 USD
